Descriptions

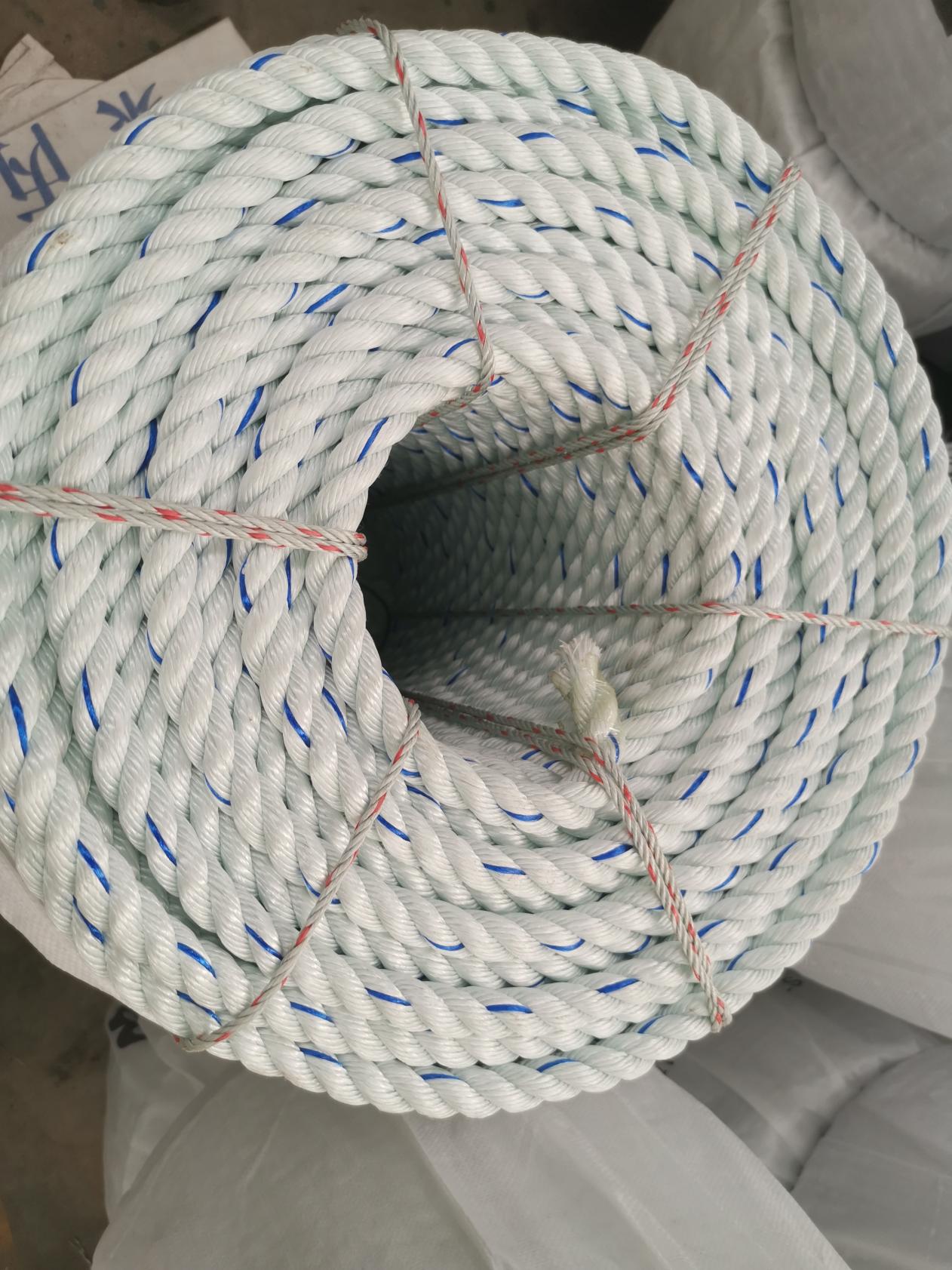

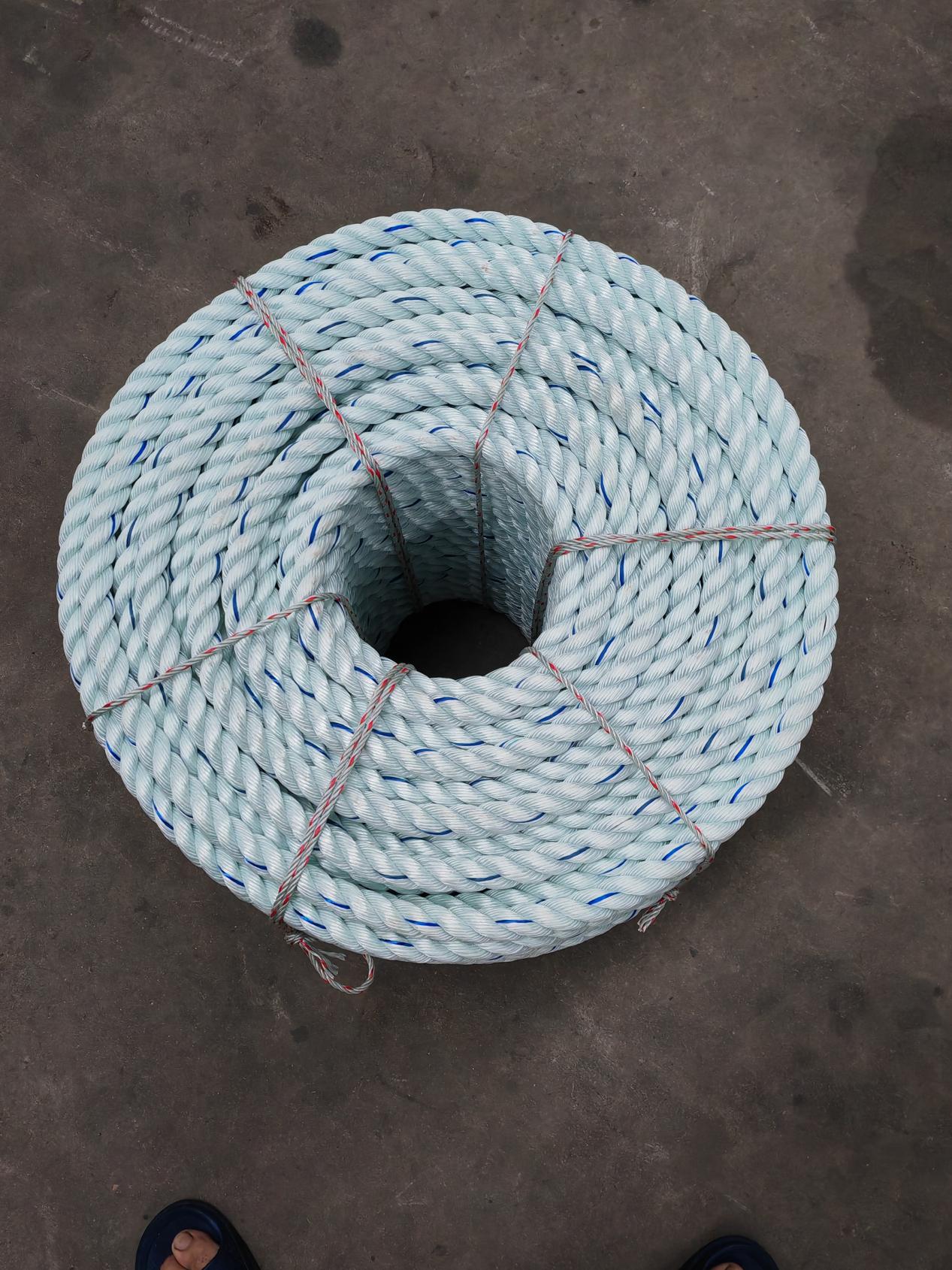

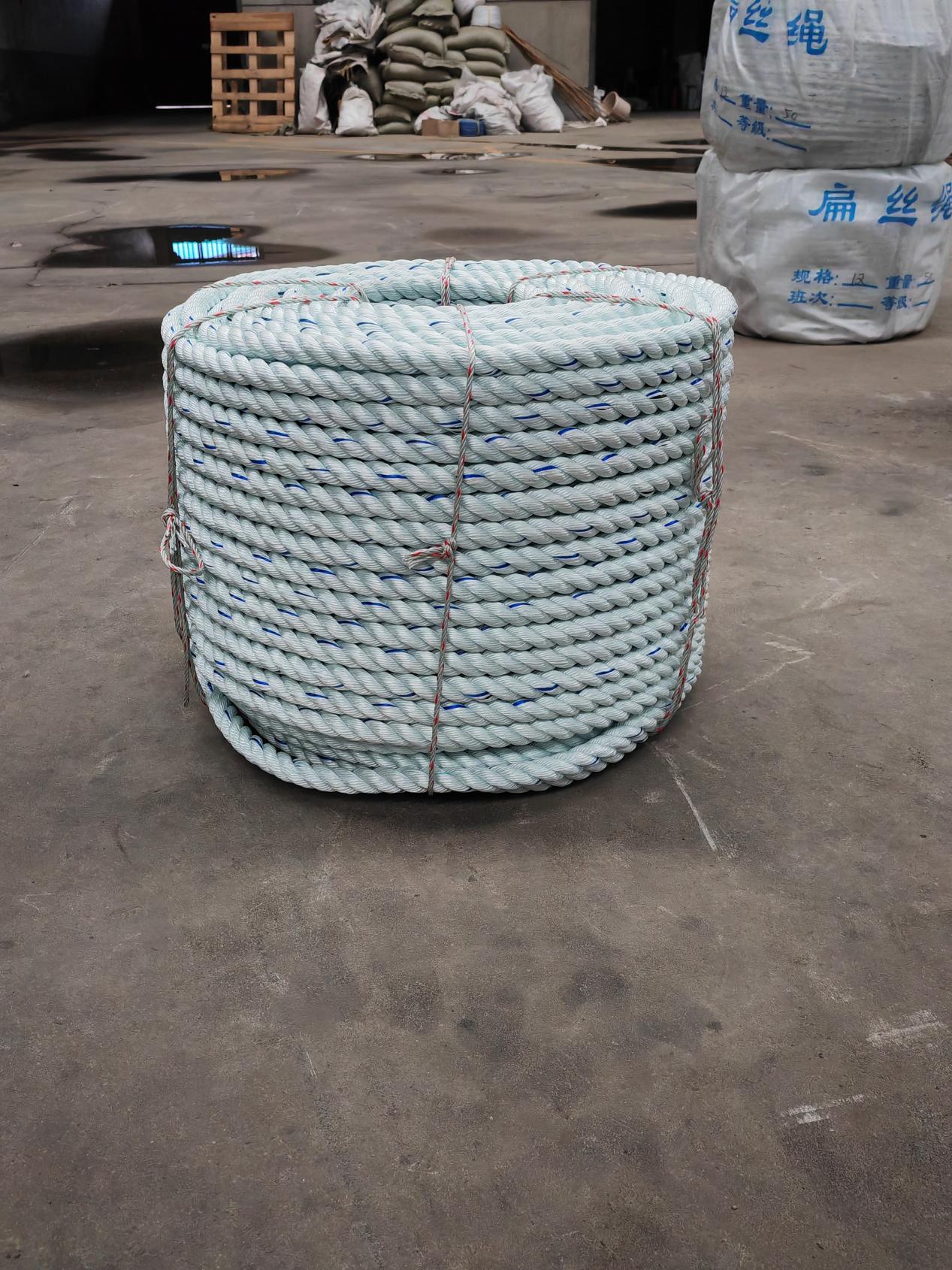

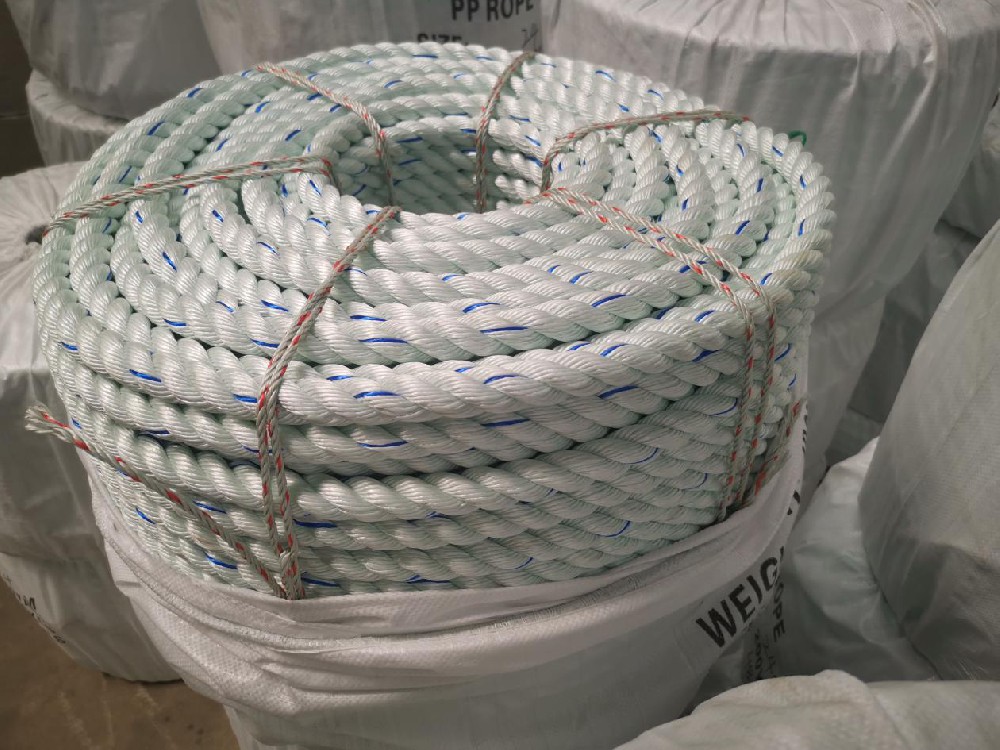

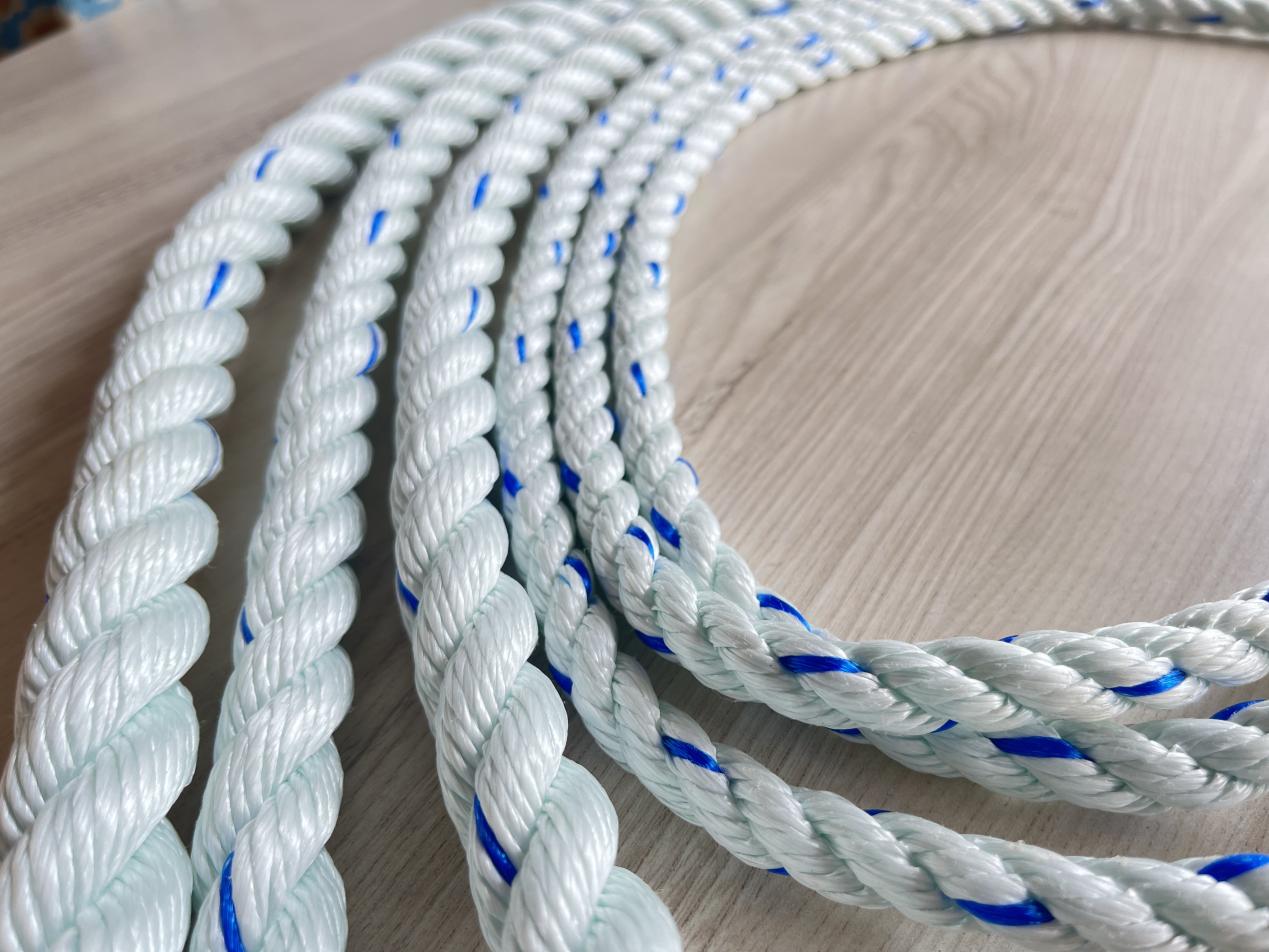

PP rope is made from plypropylene danline, use 100% virgin raw materials, It is very economical and practical, with high quality and good pulling force,wear resistance,light resistance,It floats and can be stored dry and wet.
PP danline rope is divided into three strand or four strand rope.The size range is 4mm to 50mm diameter, and can also be "S" or "Z" twisting method according to customer requirements. we can make different hardness according to the needs of customers, which can be soft or hard, generally, what we make is medium hard. For the rope color, any color can be made, and can be customized according to customer’s requirements. For the package, usually use coil,bundle,and reel,the outer packaging is generally carton or woven bag.
Use For Marine, Fishing Net, Ship Mooring, Agriculture, Gardening, Aquaculture
Techinical sheet
SIZE | PP Rope(ISO 2307-2010) | |||||
Dia | Dia | Cir | WEIGHT | MBL | ||
(mm) | (inch) | (inch) | (kgs/220m) | (lbs/1200ft) | (kgs or tons) | (kn) |
4 | 5/32 | 1/2 | 1.32 | 4.84 | 215 | 2.11 |
5 | 3/16 | 5/8 | 2.45 | 8.99 | 320 | 3.14 |
6 | 7/32 | 3/4 | 3.75 | 13.76 | 600 | 5.88 |
7 | 1/4 | 7/8 | 5.1 | 18.71 | 750 | 7.35 |
8 | 5/16 | 1 | 6.6 | 24.21 | 1,060 | 10.39 |
9 | 11/32 | 1-1/8 | 8.1 | 29.71 | 1,190 | 11.66 |
10 | 3/8 | 1-1/4 | 9.9 | 36.32 | 1,560 | 15.29 |
12 | 1/2 | 1-1/2 | 14.3 | 52.46 | 2,210 | 21.66 |
14 | 9/16 | 1-3/4 | 20 | 73.37 | 3,050 | 29.89 |
16 | 5/8 | 2 | 25.3 | 92.81 | 3.78Ts | 37.04 |
18 | 3/4 | 2-1/4 | 32.5 | 119.22 | 4.82 | 47.23 |
20 | 13/16 | 2-1/2 | 40 | 146.74 | 5.8 | 56.84 |
22 | 7/8 | 2-3/4 | 48.4 | 177.55 | 6.96 | 68.21 |
24 | 1 | 3 | 57 | 209.1 | 8.13 | 79.67 |
26 | 1-1/16 | 3-1/4 | 67 | 245.79 | 9.41 | 92.21 |
28 | 1-1/8 | 3-1/2 | 78 | 286.14 | 10.7 | 104.86 |
30 | 1-1/4 | 3-3/4 | 89 | 326.49 | 12.22 | 119.75 |
32 | 1-5/16 | 4 | 101 | 370.51 | 13.5 | 132.3 |
