Descriptions

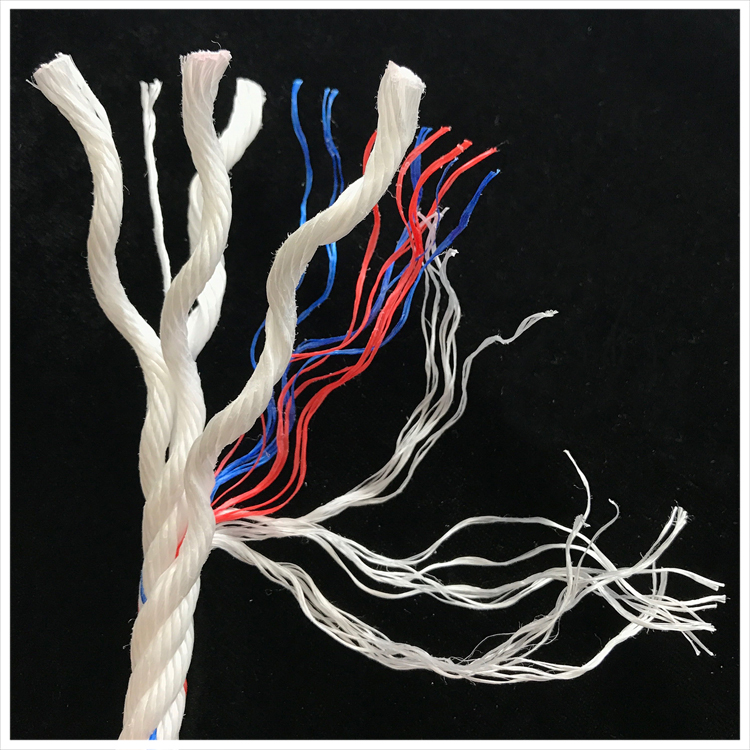

4 Strands Twisted PP Danline Rope
(1) Size:4-60mm
(2) Material: Polypropylene Danline
(3) Color: White with red and blue or Red,Green,Blue,Yellow etc.
(4) Type: 4 Strands twisted

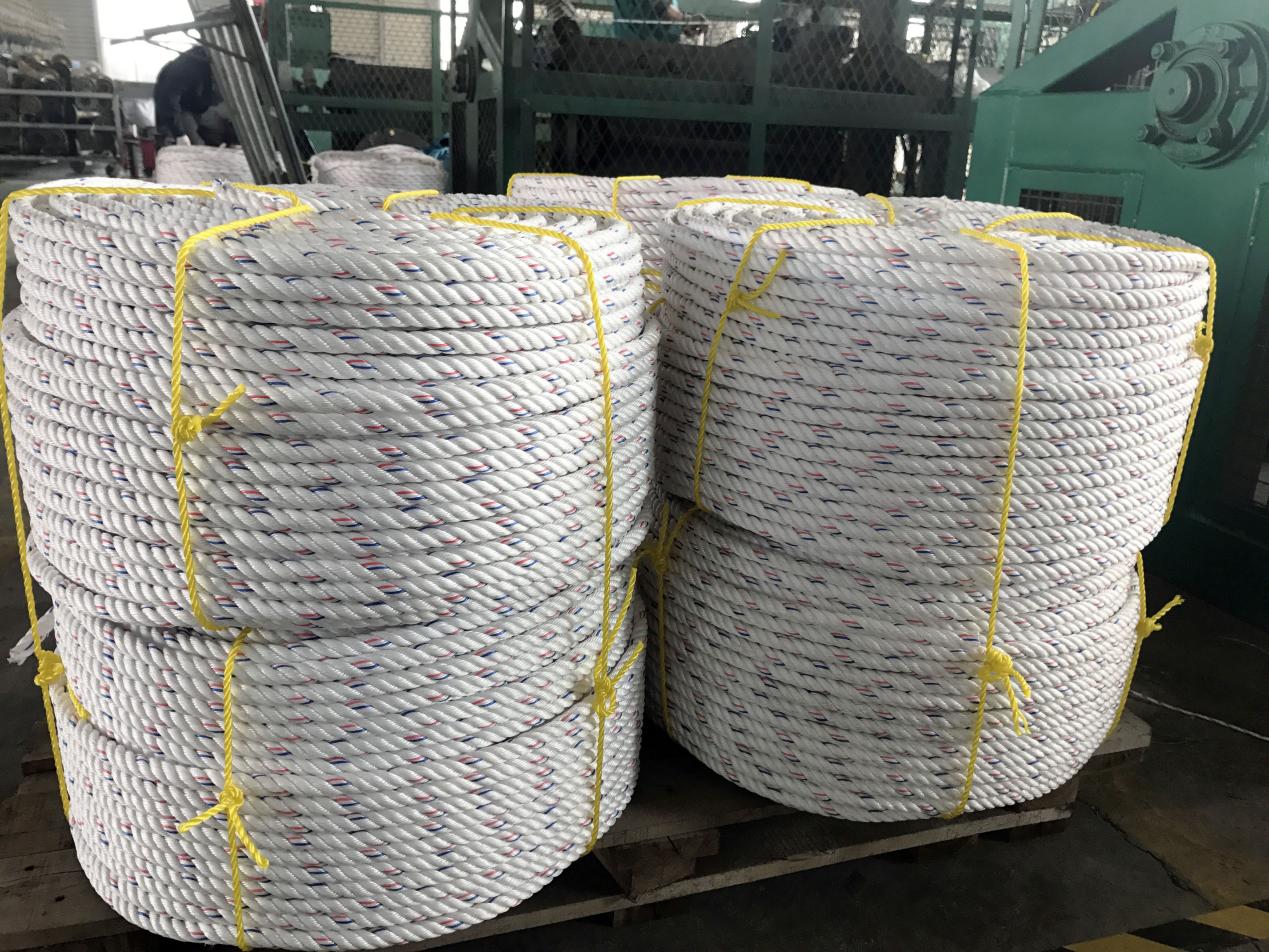

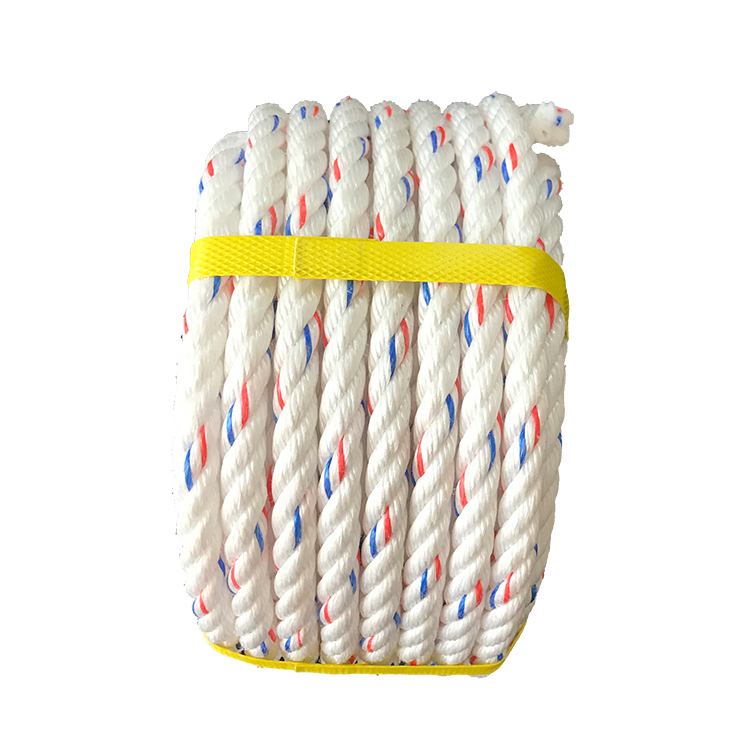

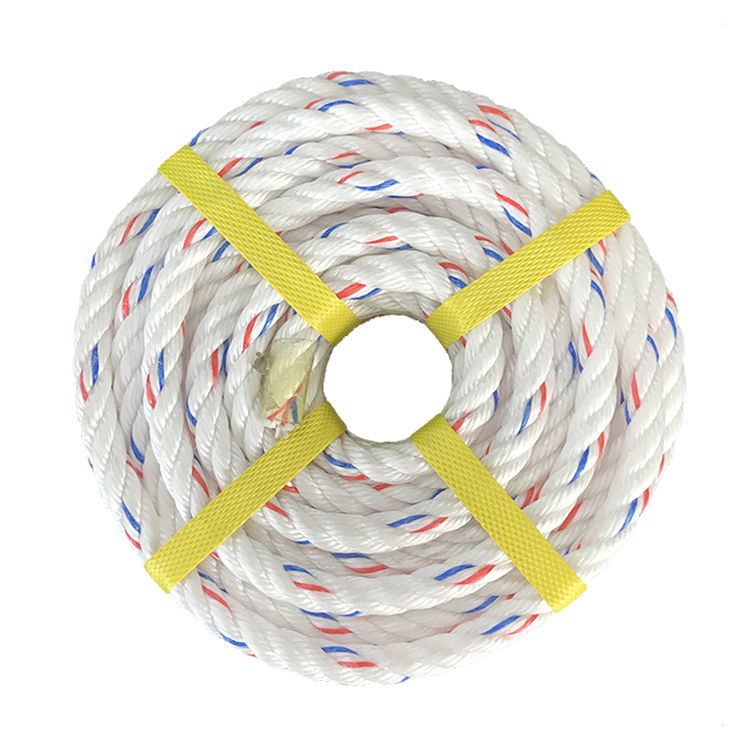

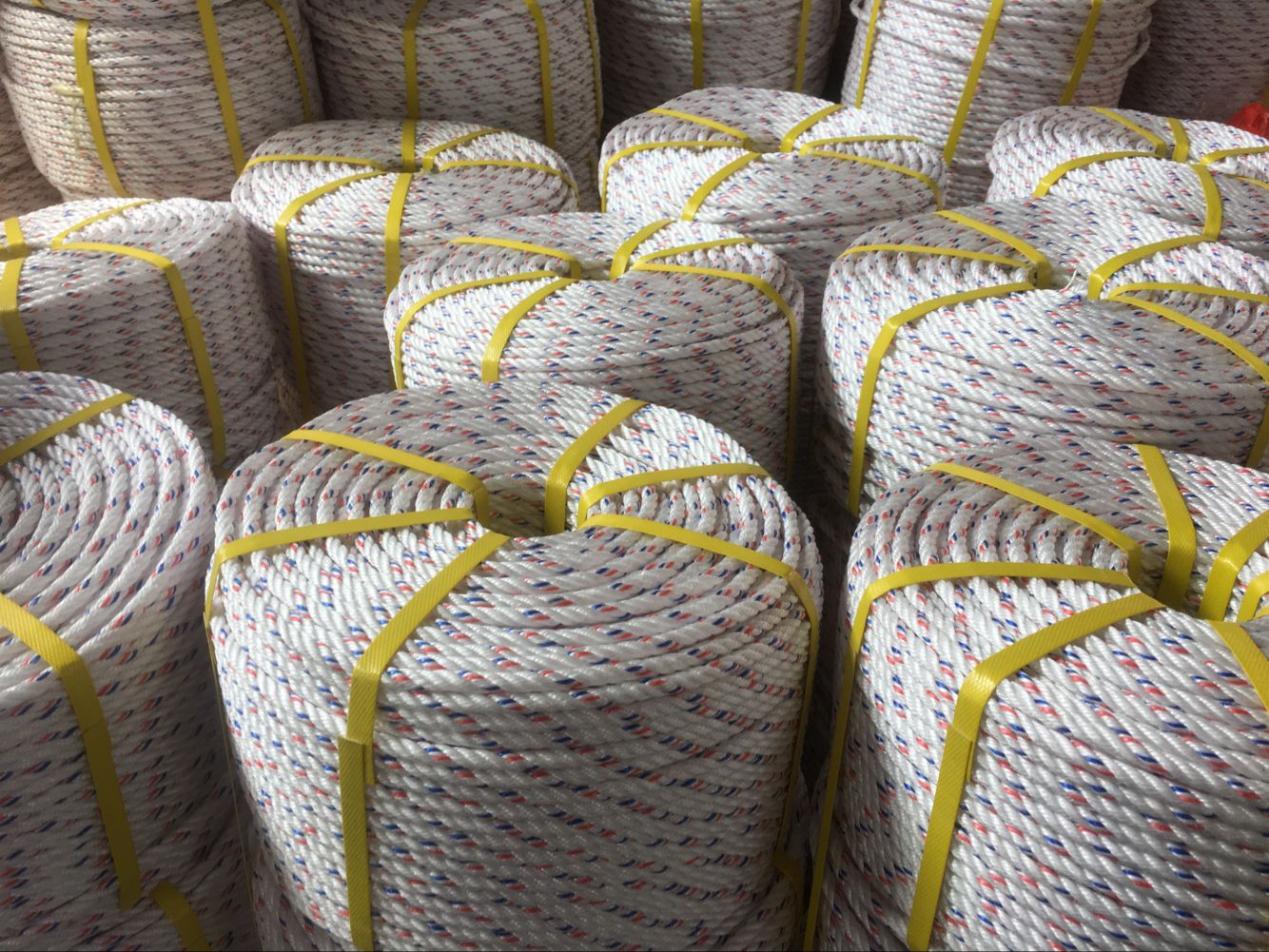

(5) Packing: Roll,in woven plastic bag
PP Danline ropes are extremely lightweight and with high Breaking Strength. They are flexible, yet heavy duty. They are known for their durability and uniform lay,which can resist abrasion very well. They are treated to be UV resistant and
Pp rope use for fishing , packing , knitmesh net , trawl net , mining
Techinical sheet
SIZE | PP Rope(ISO 2307-2010) | |||||
Dia | Dia | Cir | WEIGHT | MBL | ||
(mm) | (inch) | (inch) | (kgs/220m) | (lbs/1200ft) | (kgs or tons) | (kn) |
4 | 5/32 | 1/2 | 1.32 | 4.84 | 215 | 2.11 |
5 | 3/16 | 5/8 | 2.45 | 8.99 | 320 | 3.14 |
6 | 7/32 | 3/4 | 3.75 | 13.76 | 600 | 5.88 |
7 | 1/4 | 7/8 | 5.1 | 18.71 | 750 | 7.35 |
8 | 5/16 | 1 | 6.6 | 24.21 | 1,060 | 10.39 |
9 | 11/32 | 1-1/8 | 8.1 | 29.71 | 1,190 | 11.66 |
10 | 3/8 | 1-1/4 | 9.9 | 36.32 | 1,560 | 15.29 |
12 | 1/2 | 1-1/2 | 14.3 | 52.46 | 2,210 | 21.66 |
14 | 9/16 | 1-3/4 | 20 | 73.37 | 3,050 | 29.89 |
16 | 5/8 | 2 | 25.3 | 92.81 | 3.78Ts | 37.04 |
18 | 3/4 | 2-1/4 | 32.5 | 119.22 | 4.82 | 47.23 |
20 | 13/16 | 2-1/2 | 40 | 146.74 | 5.8 | 56.84 |
22 | 7/8 | 2-3/4 | 48.4 | 177.55 | 6.96 | 68.21 |
24 | 1 | 3 | 57 | 209.1 | 8.13 | 79.67 |
26 | 1-1/16 | 3-1/4 | 67 | 245.79 | 9.41 | 92.21 |
28 | 1-1/8 | 3-1/2 | 78 | 286.14 | 10.7 | 104.86 |
30 | 1-1/4 | 3-3/4 | 89 | 326.49 | 12.22 | 119.75 |
32 | 1-5/16 | 4 | 101 | 370.51 | 13.5 | 132.3 |
